Description

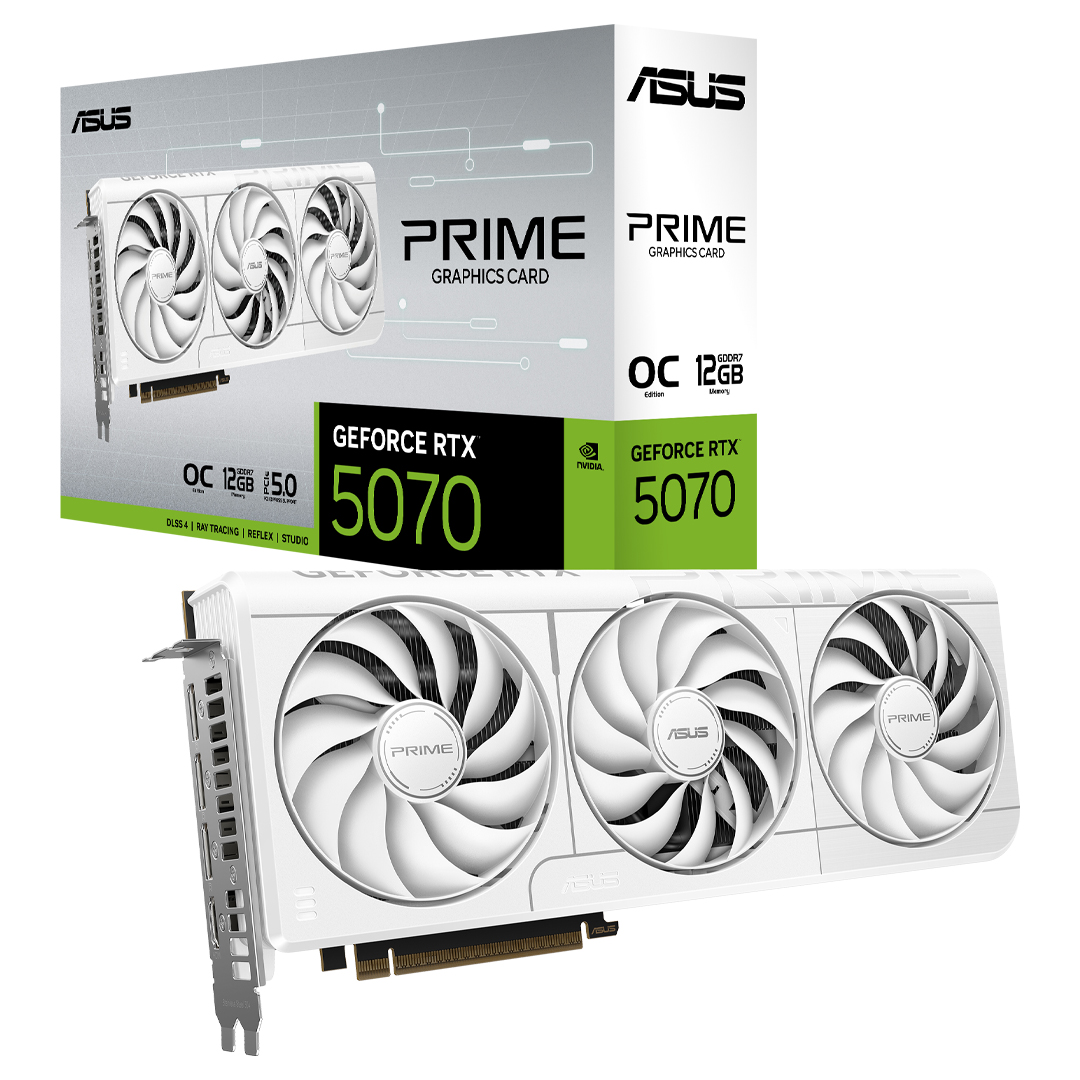

The ASUS PRIME RTX 5070-O12G is a high-performance GPU featuring 12GB GDDR7 memory, 6144 CUDA cores, and a 2.5-slot triple-fan cooling design optimized for high-resolution gaming and small form-factor builds.
Core Specifications
- GPU Architecture: NVIDIA Blackwell
- CUDA Cores: 6144
- Memory: 12GB GDDR7
- Memory Interface: 192-bit
- Memory Speed: 28 Gbps
- PCIe Interface: PCIe 5.0 x16
- Boost Clock: Up to 2587 MHz (OC)
- Base Clock: 2325 MHz
- TDP / Recommended PSU: 750W system recommended
- Power Connector: 1 × 16-pin
Display and Connectivity
- Maximum Digital Resolution: 7680 × 4320
- Display Outputs: 1 × HDMI 2.1b, 3 × DisplayPort 2.1b
- HDCP Support: Yes, version 2.3

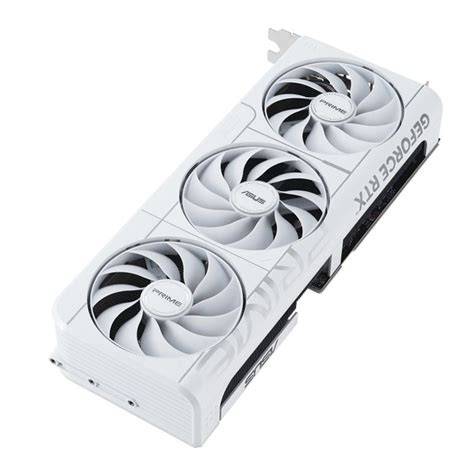

Cooling and Design
- Cooling Solution: Triple Axial-tech fans with longer blades and barrier rings for improved airflow and reduced noise
- 0dB Technology: Fans stop below 50°C for silent operation and resume above 55°C
- Dual Ball Bearings: Enhanced durability and lifespan
- Vented Backplate: Improves heat dissipation and thermal stability
- MaxContact & Phase-Change Thermal Pads: Optimizes heat transfer from GPU to heatsink
- Slot Design: 2.5-slot, compatible with s
