Description

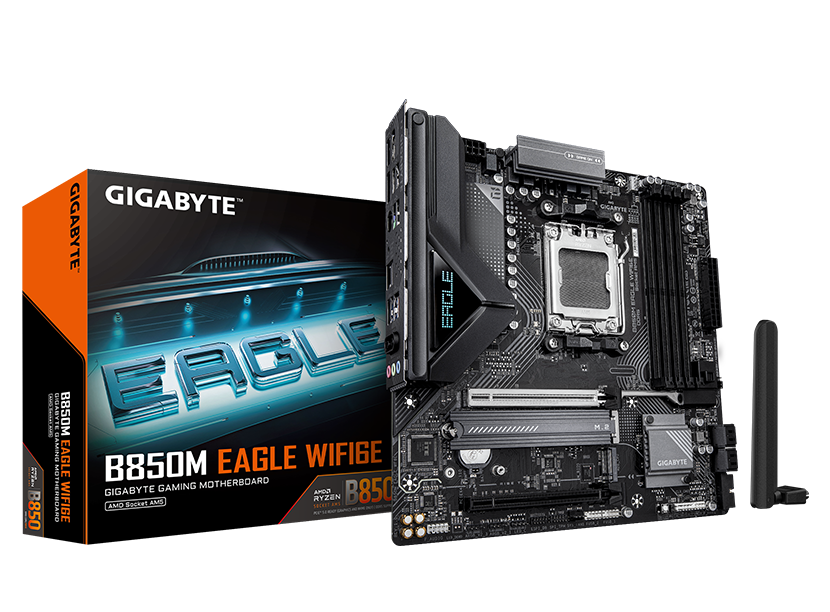

The B850M EAGLE WIFI6E motherboard has the following specifications:
- Form Factor: Micro-ATX
- Chipset: B850M, supports DDR5 memory with up to 8200 MT/s speeds
- Memory Slots: 4 slots, maximum capacity of 256 GB
- Connectivity: PCIe 5.0 support, 2 x16 slots for graphics cards and NVMe SSDs, 2 M.2 slots, 4 SATA ports
- Networking: Wi-Fi 6E, Realtek 2.5GbE LAN, Bluetooth 5.3
- Graphics: HDMI 2.1, DisplayPort 1.4
- Power Delivery: 60 A across 8 phases, suitable for low-power CPUs (≤65 W TDP)
