Description
Technical Features
- Enterprise Hard Drive
- 10 TB capacity
- 3.5" form factor
- SATA-3.3 interface
- 6.0/3.0/3.0/1.5 Gbit/s interface speed
- 512e / 4Kn sector format
- CMR recording technology
Performance
- 7,200 rpm rotational speed
- 512 MiB buffer
- 268 MiB/s sustained transfer rate (typ.)
Reliability
- 2,000,000 hours MTTF
- Unrecoverable error rate of 10 per 10^16 bits read
- 550 TB/year workload
- 24/7 operation
- 600,000 load/unload cycle time
Power management
- Power supply voltage of 12 VDC ±10% and 5 VDC +10/-7%.
- Read/write power consumption: 9.63 W (typ.)
- Active standby power consumption: 5.74 W (typ.)
Environmental
- Operating temperature 5 to 55 °C
- Non-operating temperature -40 to 70 °C (-40 to 158 °F)
- Relative humidity 5% to 90% noncondensing
- Noise level at standby: 34 dB (typ.)
Physical characteristics
- Dimensions: 147 (L) × 101.85 (W) × 26.1 (H) mm
- Net weight: 720 g
Contents

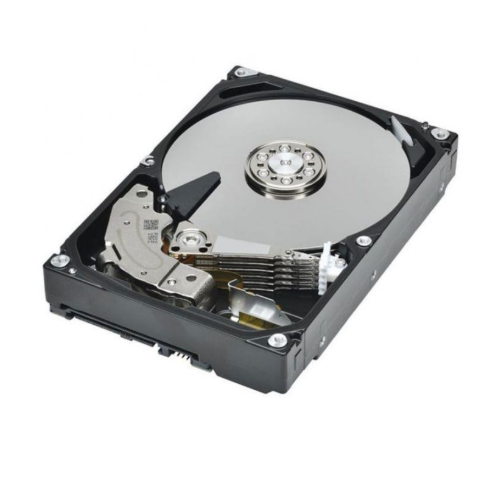

- SAM-5072 Enterprise Hard Disk Drive (SAM-5072)
