ATEN VE022 Mini Cat5 VGA/Audio Extender - VE022 - [SG Ready Stock]

$230.00

Canonical URL: https://omnicommerce.ai/catalog/ca2e1c16-07cc-467d-b3d7-c3a65719cdae

ATEN VE022 Mini Cat5 VGA/Audio Extender - VE022 - [SG Ready Stock]

Product Highlights

  • Extend VGA + audio up to 150m over Cat5
  • 1920x1200 @ 60Hz resolution support
  • Adjustable signal gain control
  • Transmitter + receiver kit included
  • 3 year manufacturer warranty

Description

The ATEN VE022 Mini Cat5 VGA/Audio Extender extends analog VGA video and mono audio signals over standard Cat5, Cat5e or Cat6 network cabling for remote display installations.

Supported Resolutions & Distance

  • 1920 x 1200 @ 60Hz up to 30 m
  • 1600 x 1200 @ 60Hz up to 100 m
  • 1280 x 1024 @ 60Hz up to 150 m

Features

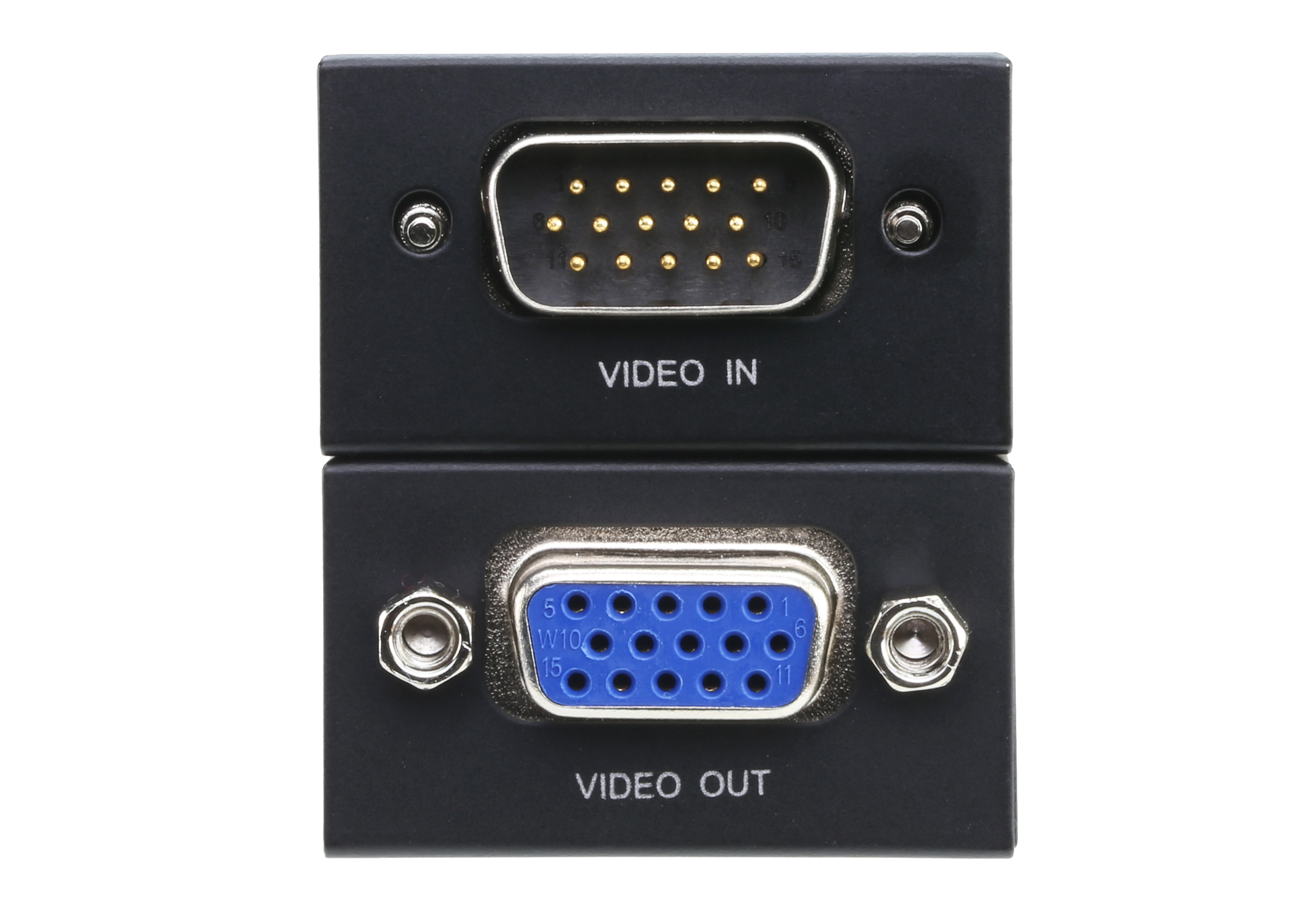

  • Complete kit including transmitter (VE022T) and receiver (VE022R) units
  • Adjustable VGA gain compensation for consistent signal clarity over distance
  • Local transmitter powered via USB; remote receiver supports independent power
  • Hot plug compatible, no power cycle required for connection changes
  • Compact metal housing
  • 3 year manufacturer warranty
